Description

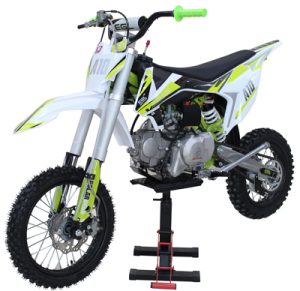

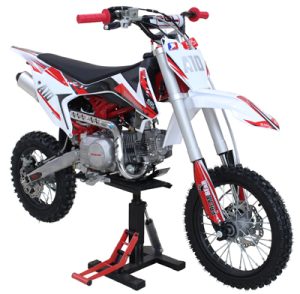

Coolster A-09 Dirt Bike

• Engine : 125cc, 4 stroke, Single Cylinder
• Transmission :  Fully Automatic
• Cooling :  Oil-Cooled
• Ignition System : CDI
• Starting System : Electric Start
• Battery: 12V,4Ah
• Final Drive : Chain Drive
• F/Brake : Hydraulic Disc (Hand)
• R/Brake : Hydraulic Disc (Foot)
• Fuel Capacity :4.5L
• Max Speed : 35-45 MPH
• Front Tire : 60/100-14 Knobby Tire
• Rear Tire: 80/100-12 Knobby Tire
• Front Suspension: L=735mm up side down, not adjustable
• Rear Suspension: L=280mm,  not adjustable
• Max Power[Kw/r/m]: (6.3(1±10%))/(7500(1±5%))
• Max Torque[N.m/r/m]: 8.8(1±10%))/(5500(1±5%))
• Compression Ratio: 9.0:1
• Seat Height: 31.1″
• Ground Clearance: 11.8″
• Max Load: 185 LBS
• Weight: G.W.166LBS, N.W.144LBS
• Bore & Stroke: 54X54
• Wheelbase: 1220±3mm
• Carton Dimensions: L*W*H*: 59″x17″x31″
• Color: Blue/Red/Orange/ Green
