Description

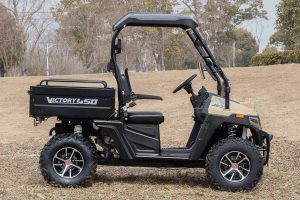

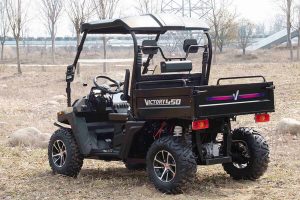

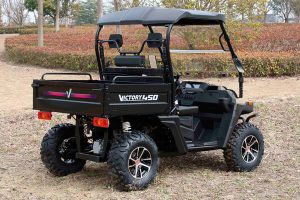

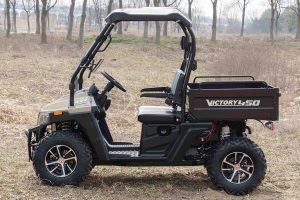

Tiger Ranchero 450

Vehicle Specification:

• Length × Width ×Height: 2620×1440×1930mm
• Wheelbase: 1840mm
• Minimum Ground Clearance: 235mm
• Seat High: 830mm
• Weight With Full Equipment: 1135 Lbs
• Rear Cargo Box Load Capacity: 330 Lbs
• Top Speed: 70km/h
• Front Brake Type: Hydraulic Disc Brake
• Rear Brake Type: Hydraulic Disc Brake
• Parking Type: Hand Brake
• Drive Mode: 4WD, Front and Rear Differential With Lock, Engine Balance Shaft
• Control Way: Steering Wheel
• Front Suspension Type: McPherson Independent Suspension
• Rear Suspension Type: Dual A-ARM Independent Suspension
• Tire Type: Front AT25×8-12 / Rear AT25×10-12
• Dump Bed Size: 930×1270×380mm Dump 35°

Engine Specification:

• Engine Type: Single cylinder, four stroke, water cool, overhead camshaft, EFI
• Cylinder Volume: 391ml
• Compression Ratio: 10:01
• Fuel System: Electronic Fuel Injection
• Ignition Way: Electric Start
• Transmission Way: CVT, Belt
• Max Power and Crankshaft Speed kW/(RPM): 20kW/ 6500—7000 r/min
• Max Torque and Crankshaft Speed N.m/(RPM): 30N.m/5000 r/min
• Lubrication Oil: SAE 15W-40

Colors: Camouflage, Red, Blue, Black, Quick Sand
