Description

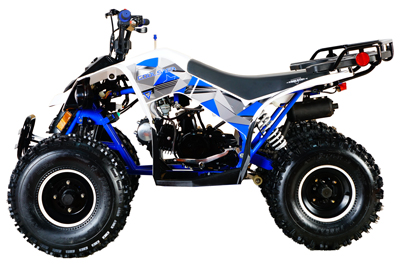

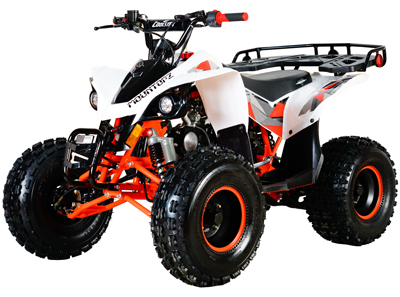

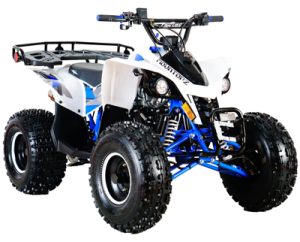

Coolster Mountopz 125-F2 ATV

**Front Hydraulic Brake**

• Engine Type: 125CC, 4 Stroke, Single Cylinder
• Transmission: Automatic With Reverse
• Cooling System: Air-cooled
• Ignition: CDI
• Starting System: Electric Start
• Battery: 12V, 5Ah
• Final Drive: Chain Drive
• Rear Brake: Hydraulic Disc (Foot)
• Max Speed: 30-40MPH
• Max load: 150LBS
• Fuel Capacity: 2.4L
• Engine Oil: 0.9L
• Front/Rear Tire: 19×7.0-8, 18×9.5-8
• Front Suspension: Double A-Arm
• Rear Suspension: Single Swing Arm
• Max Horsepower: 5.7KW/7500R/Min
• Max Torque: 7.0N.M/5500R/Min
• Bore Stroke: 52.4/49.5MM
• Weight: G.W. / 284 LBS/ N.W 265 LBS
• Carton Dimensions: L*W*H: 58” x 33”x 26”

Colors: Black/Green,Blue/White,Red/White,Grey/Green
